785 nm Wavelength Stabilized High Temperature Resistance Laser Diode 200mW
Features
$ 49.70
Description

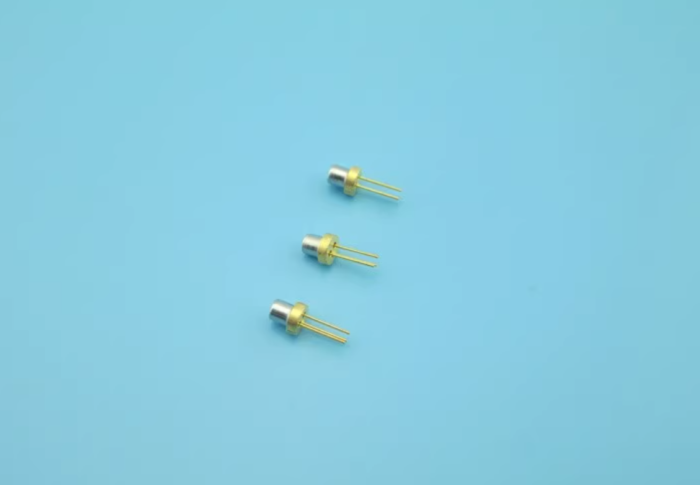

785 nm Wavelength Stabilized High Temperature Resistance Laser Diode 200mW Details: 785 nm Wavelength Stabilized High Temperature Resistance Laser Diode 200mW is based on quantum well epitaxial layer growth and a highly reliable ridge waveguide structure with external grating feedback. This singletransverse mode laser diode features high optical output power with a wavelength stabilized spectrum having single frequency. The 785nm laser diode provides a compact TO9 5.6 mm laser source for Raman spectroscopy, instrumentation and pumping applications. Specifications: LD Reverse Voltage (Max):2 V Output Wavelength:785nm/ -3nm Output power: 200mW Absolute Max Current: 200mA Working Voltage:DC=2.2V-3V Operating Temperature: -10 to 70 Storage Temperature:-40 to 80 Pin Code:E High Temperature Resistance Note*: Operating Temperature = wavelength stabilized temperature range (ΔTstabilized), between 15 and 30
