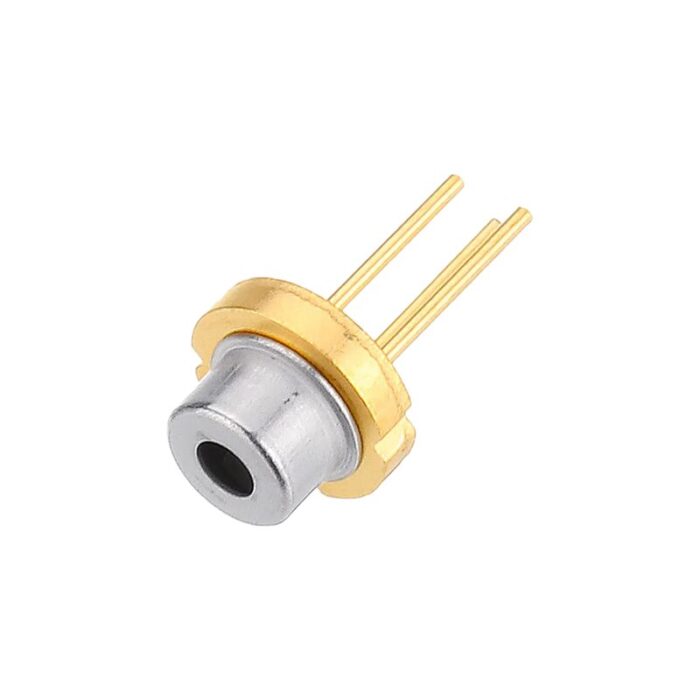

785nm 100mW SM Infrared Laser Diodes Single Mode LD With Photodiode WSLD-785-100m-1-PD
$75.87
$114.56
785nm 100mW SM Infrared Laser Diodes Single Mode LD With Photodiode WSLD-785-100m-1-PD ● Part Number：WSLD-785-100m-1-PD ● Wavelength：758nm ● Output Power：100mW ● Package：TO18 (5.6mm) ● Built-in PD Part Number WSLD-785-100m-1-PD PARAMETER SYMBOL VALUE UNIT OF MEASURE Reverse Voltage Vr 2.0 V Operating Temperature Top -10~ 60 °C Storage Temperature Tstg -40 ~ 85 °C Lead Soldering Temperature (10 sec.) Tis 260 °C Typical Specification (@25C°) Min. Typical Value Max. Optical Specifications Center Wavelength 785nm /-10nm Output Power —- 100mW —- Spectral Width(FWHM) —- 2.0nm —- Wavelength Temp. Coefficient 0.3nm/°C Laser Type FP Beam Type Single Mode Beam Divergence(FWHM) 15°⊥x8°∥ 17°⊥x9°∥ 19°⊥x10°∥ Slope Efficiency —- 1.1mW/mA —- Electrical Specifications Threshold Current —- 35mA —- Operating Current —- 125mA —- Operating Voltage —- 2.3V —- Photodiode Specifications Photodiode Built-in PD Current —- 0.3mA —- PD Reverse Voltage (Max.) 30V Other Specifications Package Style TO18 （5.6mm） Recommended Operating Temp. 25°C Other —-
