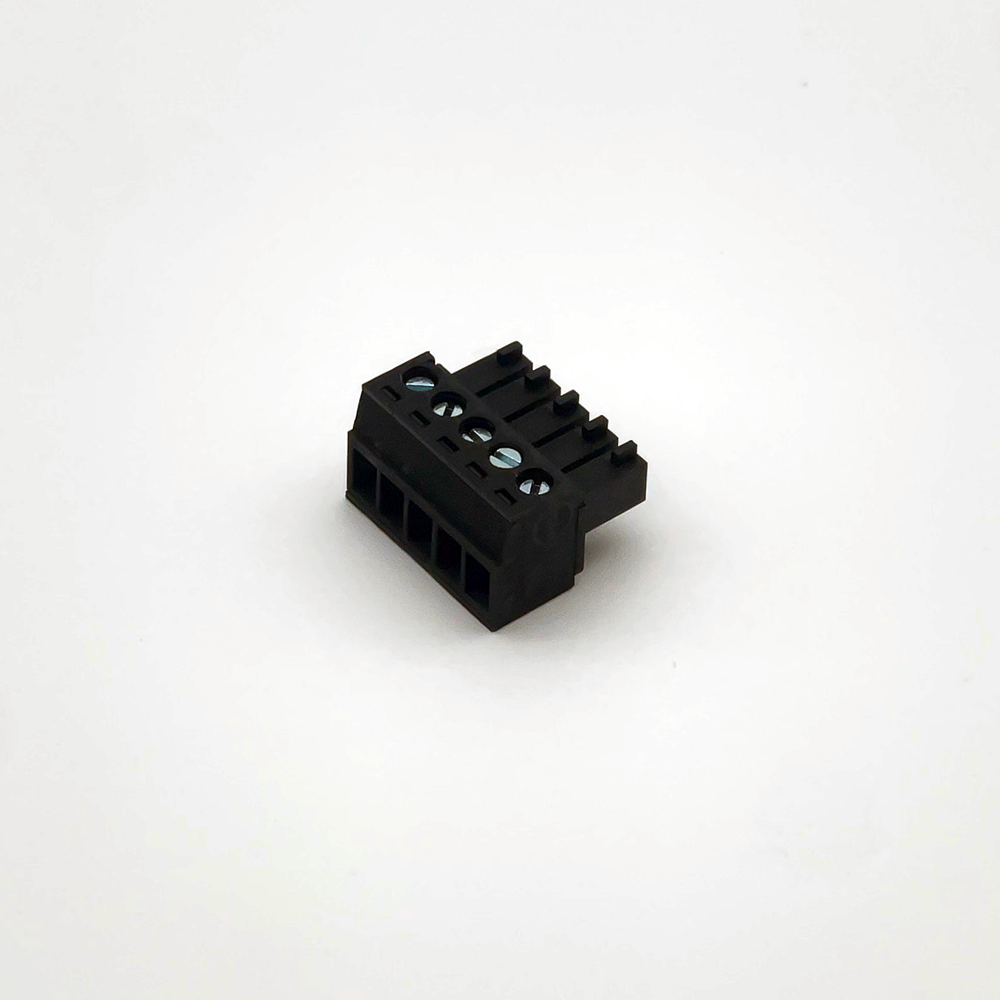

Description The Clock Relay Connector is the connector required to interface to the internal relay of the PoE and WiFi clocks. This is useful for audible notifications based on alarms or at the end of countdown events. Pin 1: Approximately 12V maximum current of 50mA Pin 2: Relay Normally Open Pin 3: Relay Common Pin 4: Relay Normally Closed Pin 5: Ground The internal relay can handle about 1 Amp of power but can also be used to control a larger relay. This connector is an important part that helps connect the internal relay of Power over Ethernet (PoE) and WiFi clocks. This connector acts as a bridge, allowing these clocks to receive signals and power through a single cable. By using the Clock Relay Connector, it makes it easier to set up and use PoE and WiFi clocks in different places, such as offices, schools, and public areas. This means that these clocks can work properly, keeping the time accurate and synchronized without needing many wires. For people who manage these clocks, it simplifies maintenance and installation because they don’t have to deal with complicated setups. Overall, the Clock Relay Connector plays a key role in ensuring that modern clocks connected through PoE and WiFi work smoothly and reliably, making it a vital component for anyone who uses these types of clocks. Additional Documentation and Information: Relay Usage Guide TimeMachines® is your reliable source for Synchronized Network Clock Systems using our GPS Network Time Servers and NTP PoE and WiFi Clock Displays. We also offer a variety of GPS Accessories, Clock Display Accessories, T-Track Ceiling Mount Kit, and our network device management software TM-Manager. Our network clock displays can also be used as Sports & Fitness Clocks. TimeMachines® products are professionally designed and manufactured in the USA. TimeMachines® offers a variety of professional time synchronization products to meet all of your network timing needs! At TimeMachines®, our focus is on quality, service, integrity, and price, while meeting the needs of our diverse and rapidly growing customer base. Our products are ideal for libraries, gyms, schools, broadcast studios, manufacturing facilities, healthcare facilities, police and public safety offices, government and military agencies, and any corporate office. Take the time to find your timing solution today at TimeMachines®! Learn more about our extended warranty options for our gps time servers.
