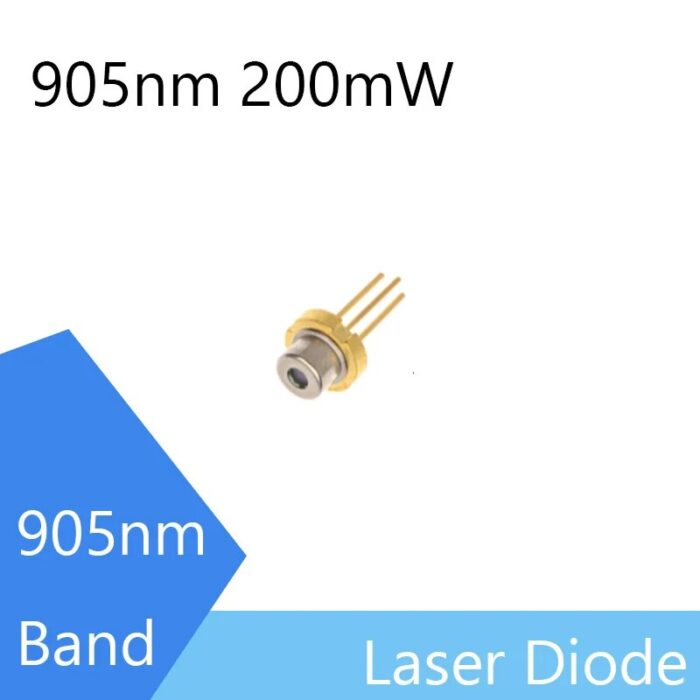

905nm 200mw IR Laser Diode TO18 5.6mm Tall Cap Infrared LD Invisible Light 895nm 915nm
Features
$ 71.13
Description
905nm 200mw IR Laser Diode TO18 5.6mm Tall Cap Infrared LD Invisible Light 895nm 915nm Features 1. Absolute maximum ratings：200mW (CW) 2. Φ5.6mm package 3. Single Transvers/TE mode laser Electrical and Optical Characteristics(Tc=25℃) Lasing Wavelength:905nm(±10nm) Optical Output:200mW Threshold Current:30mA Operating Current:250mA Operating Voltage:2.1V Monitor Current:0.3mA Operating Temperature:-10 to 70℃ Beam Divergence(FWHM) Parallel:9deg Perpendicular:26deg External dimensions(Unit : mm) Pin Description
