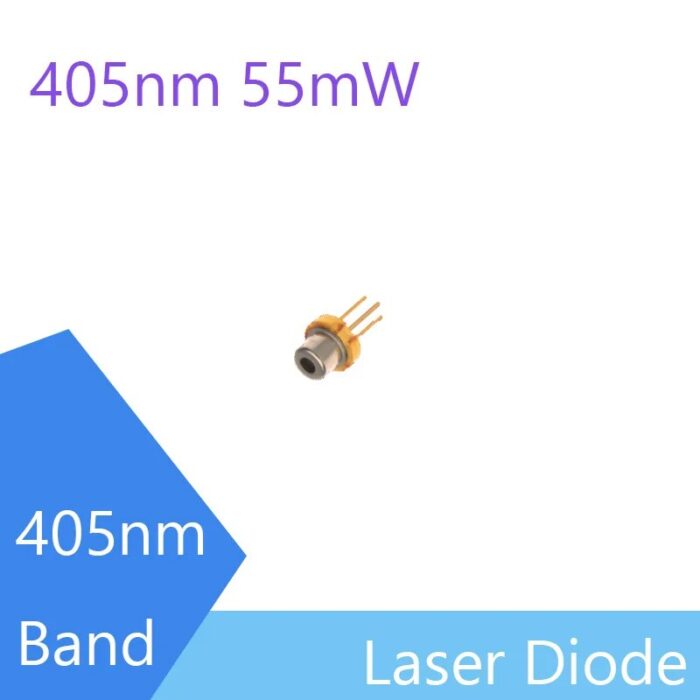

New 405nm 20mw-55mw Violet Laser Diode 3.8mm TO38 ld-light NDV1342
Features
$ 40.08
Description
New Nichia 405nm 20mw-55mw Violet Laser Diode 3.8mm TO38 ld-light NDV1342 Brand:Nichia Model Number: NDV1342 Origin: JP(Origin) Item Type: Stage Lighting Effect Light Output: 20mW Operating Voltage: 4.4V Operating Current: 30mA Features 1. Absolute maximum ratings：55mW (CW) 2. Φ3.8mm package,Floating Mounted Electrical and Optical Characteristics(Tc=25℃) Lasing Wavelength:405nm Optical Output:20mW Threshold Current:16mA Operating Current:30mA Operating Voltage:4.4V Operating Temperature:-10 to 80℃ Beam Divergence(FWHM) Parallel:9deg Perpendicular:19deg External dimensions(Unit : mm) Pin Description Pin1 LD Anode Pin2 LD Cathode Pin3 NC(case)
