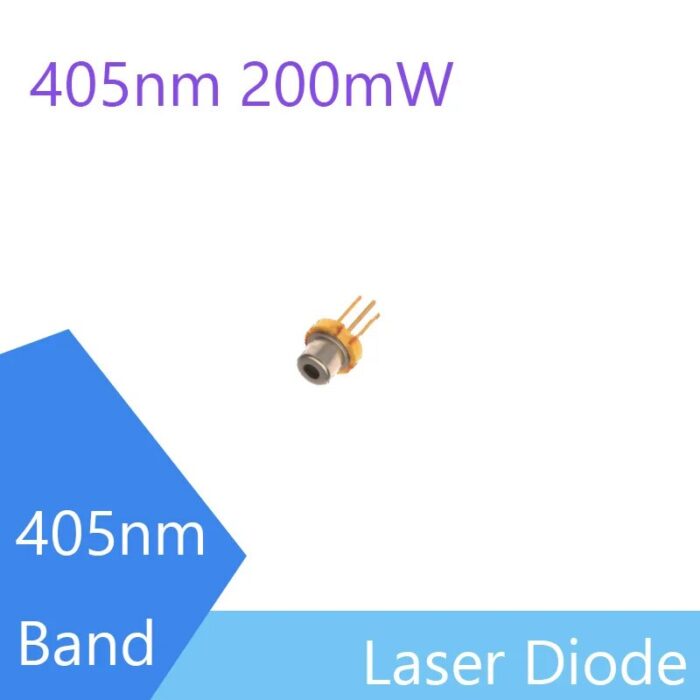

New 405nm 200mW Laser Diode Purple TO38 3.8mm Package Blue Violet Light LD Near-UV 400mW Pulse
Features
$ 64.32
Description
New 405nm 200mW Laser Diode Purple TO38 3.8mm Package Blue Violet Light LD Near-UV 400mW Pulse Features 1. Absolute maximum ratings：200mW (CW) 400mW(Pulse) 2. Φ3.8mm package 3. Operating Temperature:0 to 75℃ Electrical and Optical Characteristics(Tc=25℃) Lasing Wavelength:405nm Optical Output:200mW Threshold Current:45mA Operating Current:210mA Operating Voltage:5.0V External dimensions(Unit : mm) Pin Description Pin1 LD Anode Pin2 LD Cathode Pin3 Non Connect(case)
