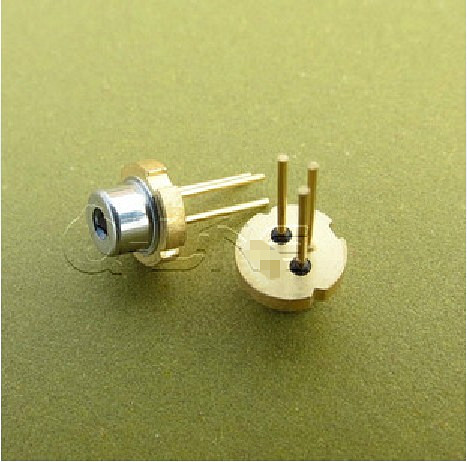

405nm 50mw Blue Violet Laser Diode TO-18 5.6mm Purple Light LD New
Features
$ 80.21
Description
405nm 50mw Blue Violet Laser Diode TO-18 5.6mm Purple Light LD New Condition: New Type: Laser Diode Features 1. Absolute maximum ratings：50mW (CW) 2. TO-56 (Φ5.6mm) packaged 3. Low cost Electrical and Optical Characteristics(Tc=25℃) Lasing Wavelength:405nm Typ. Optical Output:50mW Operating Current:60mA Operating Voltage:<5.3V Operating Temperature:-10 to 50℃ External dimensions(Unit : mm) Pin Description Pin1 Non connection Pin2 LD Anode Pin3 LD Cathode(case)
