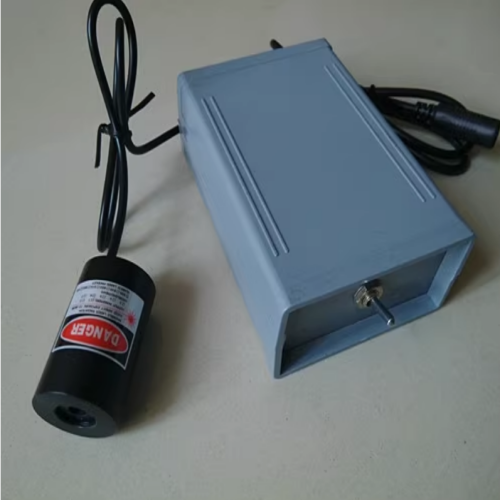

808nm 800mW 1W 2W laser module laser light CCD night vision illumination Parameter: Center wavelength: 808nm±5nm Power: 1W.2W Divergence angle: 0.6mrad~8mrad adjustable Exit pupil aperture: 5mm Spot shape: square Diode Package: C Package Optical system: aspheric infrared optical glass lens Spot description: 50CM can be adjusted to a spot diameter of about Φ1.5×1.5mm, and the spot size can be adjusted according to the use distance Dimensions: module Ø25mm×40mm; Circuit board Ø60mm× 40mm×24mm Operating voltage: 3V Operating current: 1.1A Laser class: III.b Operating temperature: -10°C~40°C
