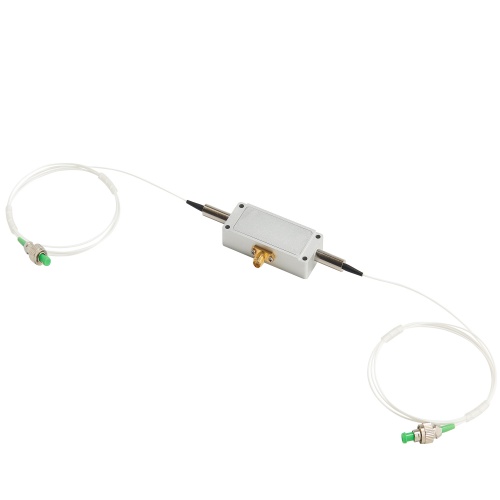

1310nm 150MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
1310nm 150MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
$35.84
$62.36
1310nm 150MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM) parameter material :TeO2 wavelength:1310nm Average optical power handling : 0.5W Peak (pulsed) optical power: 0.5kW Ultrasonic sound velocity : 4200m/s Insertion loss :3dB Polarization Extinction Ratio：18dB Extinction ratio : 50dB Return loss: 40dB Rising edge time ：25ns frequency :150MHz Frequency shifting : 150MHz（ Customizable -150） Frequency stability: 150 /-0.1%MHz RF power :3W Voltage VSWR :1.2:1 Input impedance: 50Ω Device interface SMA Fiber type ：PM1550 Fiber length： 1m Fiber optic interface： FC/APC Operating temperature ：-20~60℃ Storage temperature ：-30~70℃
Acousto Optic Modulator
Acousto Optic Modulator
1310nm 150MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
$35.84
$62.36
1310nm 80MHz Single-mode Fiber Acousto-Optic Modulator (AOM)
$71.89
$141.63
1064nm 80MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
$55.4
$74.8
1064nm 150MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
$44.75
$87.26
1064nm 100MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
$39.74
$68.74
1064nm 200MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
$62.43
$120.5
1310nm 40MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
$80.52
$145.75
1064nm 60MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
$77.62
$93.92
1310nm 40MHz Single-mode Fiber Acousto-Optic Modulator (AOM)
$41.71
$77.57
1310nm 200MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
$50.21
$63.27
1064nm 100MHz Single-mode Fiber Acousto-Optic Modulator (AOM)
$73.04
$100.8
1064nm 40MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)
$35.41
$62.31
