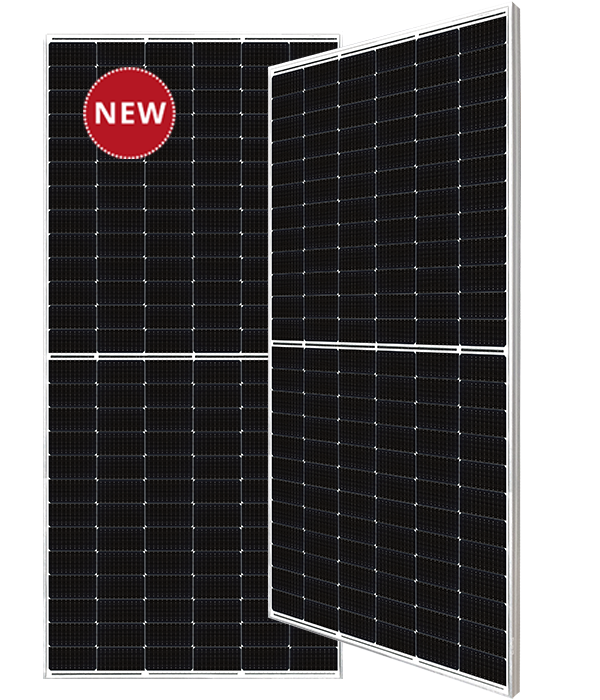

540w-adatlap-letoltese CS6W-525|530|535|540|545MS 525 W ~ 545 W CANADIAN SOLAR INC. is committed to providing high qualitysolar products, solar system solutions and services to customersaround the world. No. 1 module supplier for quality and performance/price ratio in IHS Module Customer Insight Survey. Asa leading PV project developer and manufacturer of solar modules with over 40 GW deployed around the world since 2001. Preliminary Technical Information Sheet MORE POWER MORE RELIABLE Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation Module power up to 545 W 545 W Module efficiency up to 21.3 % Compatible with mainstream trackers Minimizes micro-crack impacts Lower LCOE & BOS cost, cost effective product for utility power plant Better shading tolerance * For detailed information, please refer to the Installation Manual. Heavy snow load up to 5400 Pa, wind load up to 2400 Pa* HiKu6 Mono * As there are different certification requirements in different markets, please contactyour local Canadian Solar sales representative for the specific certificates applicable to theproducts in the region in which the products are to be used. PRODUCT CERTIFICATES* CANADIAN SOLAR INC. 545 Speedvale Avenue West, Guelph, Ontario N1K 1E6, Canada, www.canadiansolar.com,
[email protected] ISO 9001:2015 / Quality management systemISO 14001:2015 / Standards for environmental management systemOHSAS 18001:2007 / International standards for occupational health & safety MANAGEMENT SYSTEM CERTIFICATES* *According to the applicable Canadian Solar Limited Warranty Statement. 12 Years Enhanced Product Warranty on Materialsand Workmanship* Linear Power Performance Warranty* 1st year power degradation no more than 2% Subsequent annual power degradation no more than 0.55% PARTNER SECTION ELECTRICAL DATA | STC* CS6W 525MS 530MS 535MS 540MS 545MS Nominal Max. Power (Pmax) 525 W 530 W 535 W 540 W 545 W Opt. Operating Voltage (Vmp) 40.4 V 40.6 V 40.8 V 41.0 V 41.2 V Opt. Operating Current (Imp) 13.00 A 13.06 A 13.12 A 13.18 A 13.23 A Open Circuit Voltage (Voc) 48.6 V 48.8 V 49.0 V 49.2 V 49.4 V Short Circuit Current (Isc) 13.75 A 13.8 A 13.85 A 13.9 A 13.95 A Module Efficiency 20.5% 20.7% 20.9% 21.1% 21.3% Operating Temperature -40°C ~ 85°C Max. System Voltage 1500V (IEC/UL) or 1000V (IEC/UL) Module Fire Performance TYPE 1 (UL 61730) or CLASS C (IEC 61730) Max. Series Fuse Rating 25 A Application Classification Class A Power Tolerance * Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and celltemperature of 25°C. ELECTRICAL DATA | NMOT* CS6W 525MS 530MS 535MS 540MS 545MS Nominal Max. Power (Pmax) 392 W 395 W 399 W 403 W 406 W Opt. Operating Voltage (Vmp) 37.7 V 37.9 V 38.0 V 38.2 V 38.4 V Opt. Operating Current (Imp) 10.40 A 10.43 A 10.51 A 10.55 A 10.58 A Open Circuit Voltage (Voc) 45.8 V 45.9 V 46.1 V 46.3 V 46.5 V Short Circuit Current (Isc) 11.09 A 11.13 A 11.17 A 11.21 A 11.25 A * Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrumAM 1.5, ambient temperature 20°C, wind speed 1 m/s. ENGINEERING DRAWING (mm) Rear View Mounting Hole CS6W-530MS / I-V CURVES * The specifications and key features contained in this datasheet may deviate slightly from ouractual products due to the on-going innovation and product enhancement. Canadian Solar Inc.reserves the right to make necessary adjustment to the information described herein at anytime without further notice.Please be kindly advised that PV modules should be handled and installed by qualified peoplewho have professional skills and please carefully read the safety and installation instructionsbefore using our PV modules. 35 1135115540079010936-Ф5Grounding Hole180A A8-10×7Mounting hole(tracker)4-14×9Mounting Hole2254 914R 710R 3 3530 July 2020. All rights reserved, PV Module Product Datasheet V1.1_EN MECHANICAL DATA Specification Data Cell Type Mono-crystalline Cell Arrangement 144 [2x (12 x6) ] Dimensions 2254 ˣ 1135 ˣ 35 mm (88.7 ˣ 44.7 ˣ 1.38 in) Weight 29.0 kg (63.9 lbs) Front Cover 3.2 mm tempered glass Frame Anodized aluminium alloy, 2 crossbars enhanced J-Box IP68, 3 bypass diodes Cable 4 mm2 (IEC), 12 AWG (UL) Cable Length(Including Connector) 400 mm (15.7 in) ( ) / 280 mm (11.0in) (-) or customized length* Connector T4 series or H4 UTX or MC4-EVO2 Per Pallet 30 pieces Per Container (40′ HQ) 600 pieces * For detailed information, please contact your local Canadian Solar sales andtechnical representatives. 5 10 15 20 25 30 35 40 45 50 55 60 5 10 15 20 25 30 35 40 45 50 55 60 0 ~ 10 W TEMPERATURE CHARACTERISTICS Specification Data Temperature Coefficient (Pmax) -0.35 % / °C Temperature Coefficient (Voc) -0.27 % / °C Temperature Coefficient (Isc) 0.05 % / °C Nominal Module Operating Temperature 42 ± 3°C Frame Cross Section A-A Category: Canadian Solar
