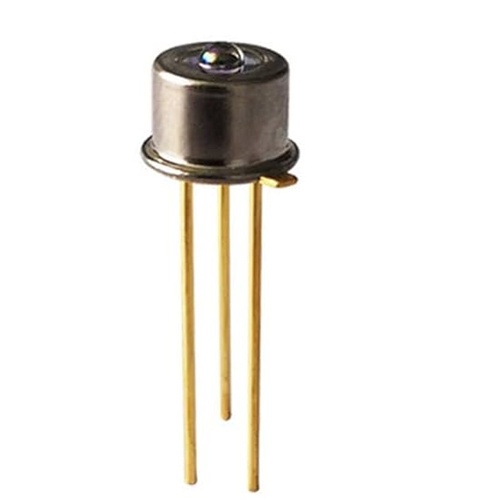

LSSPD-U1 Silicon PIN photodiode 200-1100nm 1mm UV Extended Silicon Photodiode Photodetector
Features
$ 40.37
Description
LSSPD-U1 Silicon PIN photodiode 200-1100nm 1mm UV Extended Silicon Photodiode Photodetector parameter Model: LSSPD-U1 Wavelength：200-1100nm Active diameter：1.0×1.0mm Saturated Optical Power：12mW Forward current:9mA Reverse voltage:20V package:TO46 Soldering temperature(time):260℃ Operating temperature:-40～ 85℃ Storage temperature:-40～ 100℃ Features: High reliability, low dark current Active diameter 1x1mm 200-1100nm spectral range Hermetic TO46 Can with UV window or with receptacle Applications: Optical sensor Optical power meter Industrial automatic control Science analysis and experiment Space light detect equipment Response spectrum testing LSSPD-U1 Silicon PIN photodiode 1mm UV Extended Silicon Photodiode Photodetector
Additional information
