RX-LFP48100 | 19″ Rack Mounted 3U Module | UL1973 | UL9540A| CEC | SGIP
Features
$ 44.08
Description

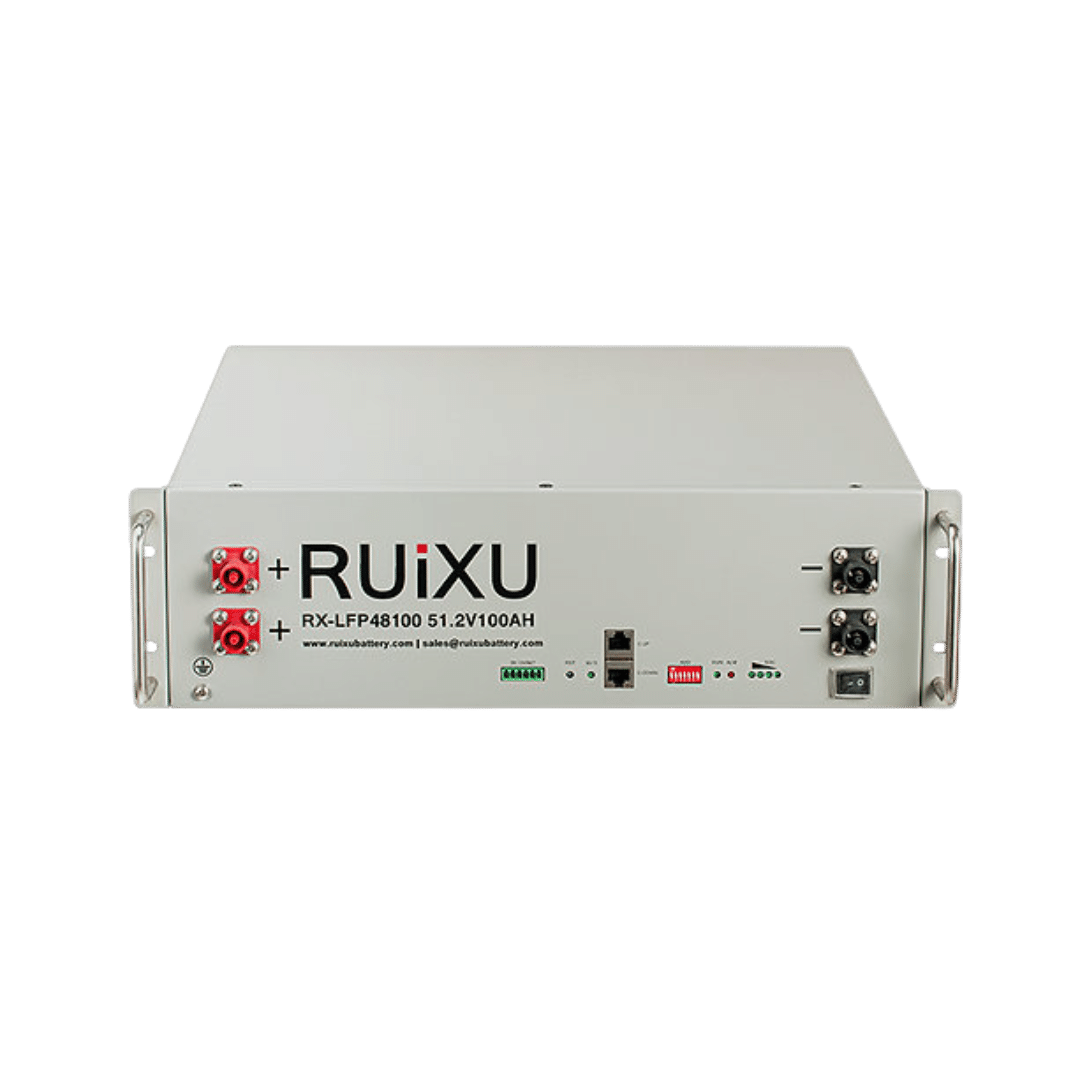

RX-LFP48100 | 19″ Rack Mounted 3U Module | UL1973 | UL9540A| CEC | SGIP Description: The RUiXU RX-LFP48V100 is a UL1973-certified 48V 100Ah (5.12 kWh) rack-mounted LiFePO₄ battery module designed for scalable energy storage with up to 32 units in parallel, offering reliable safety, wide inverter compatibility, and compact 3U form factor for 19″ racks. Modular Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller. Inverter Protocol Choosing Use DIP address to set the RS485 baud rate and inverter protocol choosing Communications Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye, Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB, MUST,Sunsynk,Schneider RS485 : MPP,Voltronic,RCT,Alpha outback Specifications Nominal voltage ：51.2V Nominal [email protected] ：100 Ah Min. [email protected]：100 Ah Nominal energy :5120Wh Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch Weight: ~47kg (103.6lb) Standard Included (1) RUiXU 48V Server Rack battery (RX-LFP48100) (1) RJ45/CAT5e Patch Cables (1) Ground Cable (1) Set of Parallel 4AWG Cables per battery
