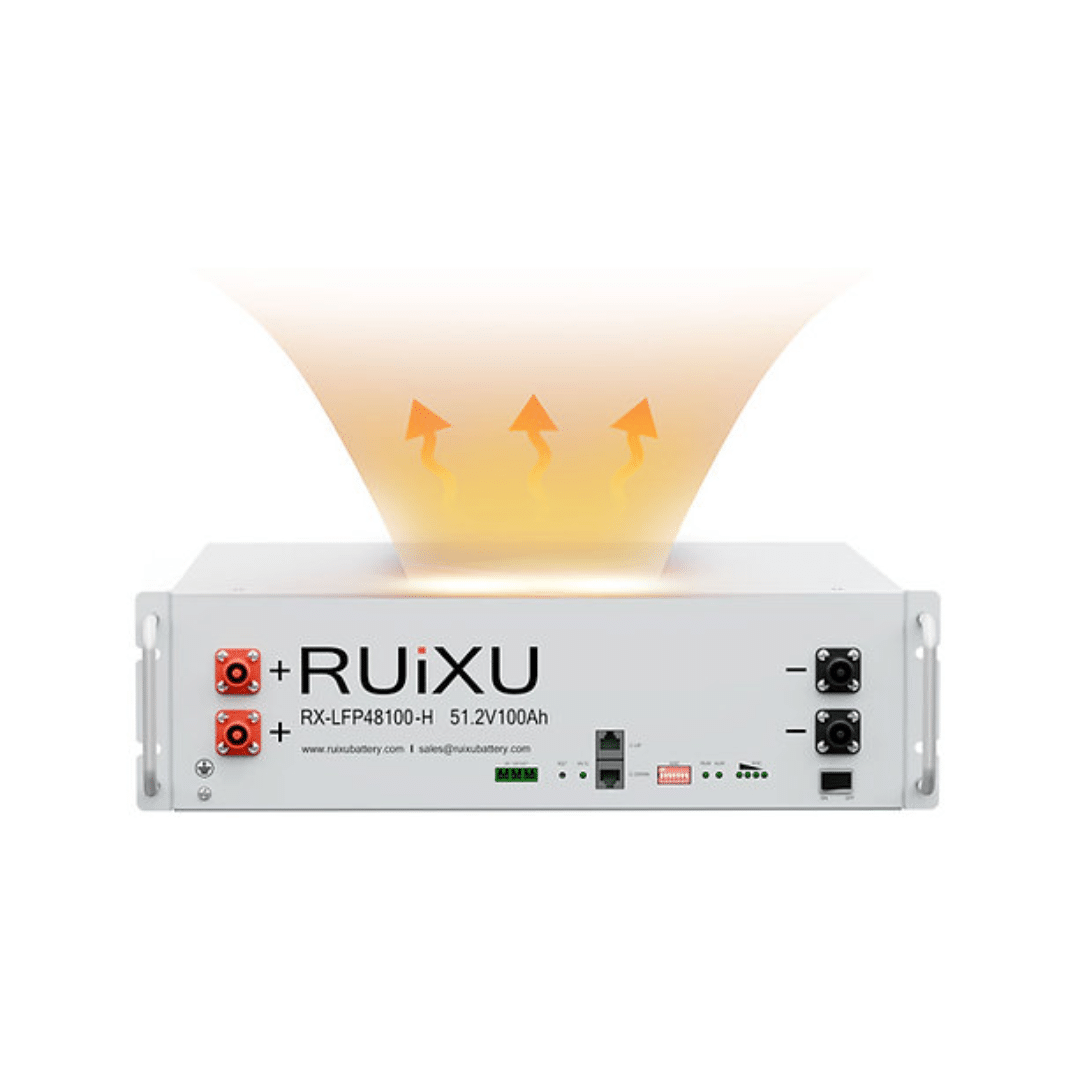

RX-LFP48100-H| 19″ Rack Mounted 3U Module| Self-heating| UL1973 9540A CEC SGIP Description: The RUiXU RX-LFP48100-H is a UL1973-certified 51.2 V 100 Ah (5.12 kWh) 19″ 3U LiFePO₄ rack-mounted battery module with self-heating capability—ensuring safe charging down to –20 °C (–4 °F)—that supports scalable parallel expansion (up to 32 units) and broad inverter compatibility via CANbus and RS-485. Modular Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller. Inverter Protocol Choosing Use DIP address to set the RS485 baud rate and inverter protocol choosing Communications Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye, Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB, MUST,Sunsynk,Schneider RS485 : MPP,Voltronic,RCT,Alpha outback Specifications Nominal voltage ：51.2V Nominal [email protected] ：100 Ah Min. [email protected]：100 Ah Nominal energy :5120Wh Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch Weight: ~47kg (103.6lb) Standard Included (1) RUiXU 48V Server Rack battery (RX-LFP48100) (1) RJ45/CAT5e Patch Cable (1) Ground Cable (1) Set of Parallel 4AWG Cables per battery
