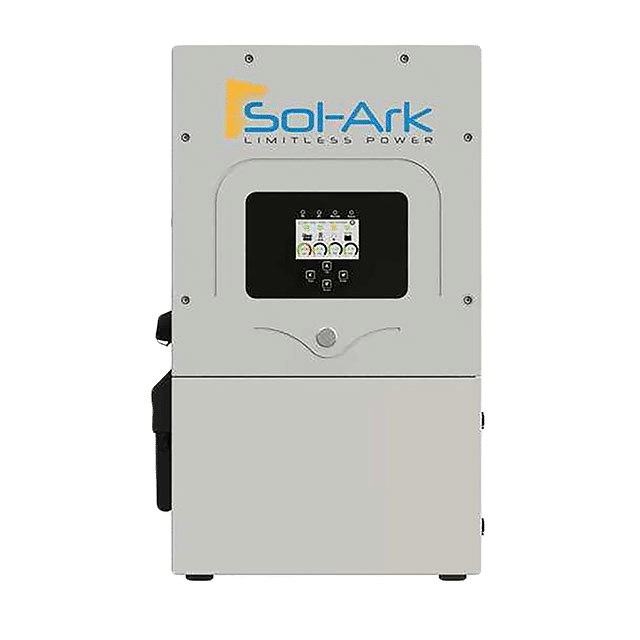

SOL-ARK 12K HYBRID SOLAR INVERTER SYSTEM APPLICATIONS: Grid-Tied Mode – Sell power back to the Utility to reduce you’re electric bill* Meter Zero Mode – Zero you’re electric bill without adding an additional smart meter Time-Of-Use Mode – Use solar and batteries to minimize grid power usage when its most expensive Smart Load Mode – Use a programmable output for high-power off grid loads or grid Time-of-use loads – to run only when they’re is optimum solar – use excess PV power when batteries are full Off Grid applications – battery agnostic AC Coupling – retrofits to existing grid tie systems Battery backup applications *NOTE: For Net Metering applications, if you have a 200A or greater service, you will need to buy a 200A Current Transformer separately (item code SOLARK200ACT). The inverters come with 100A CTs that are appropriate for 2/0 wire. The 200A CTs support 4/0 wire. FEATURES: Grid-Interactive or Off-Grid capability in the same package – can be used with or without energy storage – add batteries down the line (The unit can be used in grid-tied applications without batteries, but if their is an outage, and they’re are no batteries, the inverter shuts down per NEC). Easy and fast to install – no external components (ie. fuses, breakers, combiner box) – all integrated in one unit Indoor/Outdoor installations Lightweight – under 80 lbs Color touch screen Works with the widest variety of 48V battery chemistries – from lead acid to lithium Backup power (even use the Grid as backup!) and support for time-of-use optimization Completely pre-wired system – Sol-Ark inverter and charge controller included Wifi integrated for easy monitoring of system performance Integrated DC Disconnect, Auto Gen Start, Critical Loads panel Highly efficient – both on-grid and off-grid Generator support Field-upgradeable software with remote support Fully NEC compliant (N. America) with rapid shutdown UL1741SA/Rule 21 and 14H Compliant (Grid Sell Only) SA-12K Specifications: Max allowed PV DC Capacity: 6,500W 6,500W = 13,000W Max PV power delivered to Battery & AC outputs 12,000 Watts Max DC voltage 500V@18A, 450V@20A MPPT voltage range 150-425V MPPT Starting Voltage 125V Number of MPPT 2 Max Solar Strings Per MPPT 2 Nominal AC Output Voltage 120/240/208V split phase Peak Inverter Efficiency 96.5% (Peak 97.5%) Continuous AC power to Grid (On Grid) 9000W 37.5A L-L (255 V); 4800W 40A L-N (120V) Continuous AC power to Loads (Off-Grid) 8000W 33A L-L (240V ); 4800W 40A L-N (120V) Battery Type Lead-Acid or Li-Ion Nominal DC Input 48V Capacity 50 – 9900Ah Grid to Battery Charging Efficiency 96.0% Dimensions (H x W x D) 30.0” x 18.3” x 10.00” Weight 78 lbs Inside the 8K box Inside the 12K box • • • • • • • • • • Outdoor rated Manual WiFi Plug with screws WiFi Power- view Desktop Link Ethernet Cable Limiter Sensors (sm) 2 Toroid Allen Key Mounting Bracket Battery Temp Sensor Indoor 12K Manual POWERVIEW DONGLE SOLD SEPARATELY The 12K INVERTER comes with everything you need to install it. Nicely packaged for added efficiency. AC/DC Coupling Supports simultaneous DC and AC coupling. Boosts PV energy without increasing PV array size and reduces storage inverter costs. 5 Year Standard Warranty
