EG4 Solar 24K BTU Hybrid Minisplit Kit 3.2KW Panels

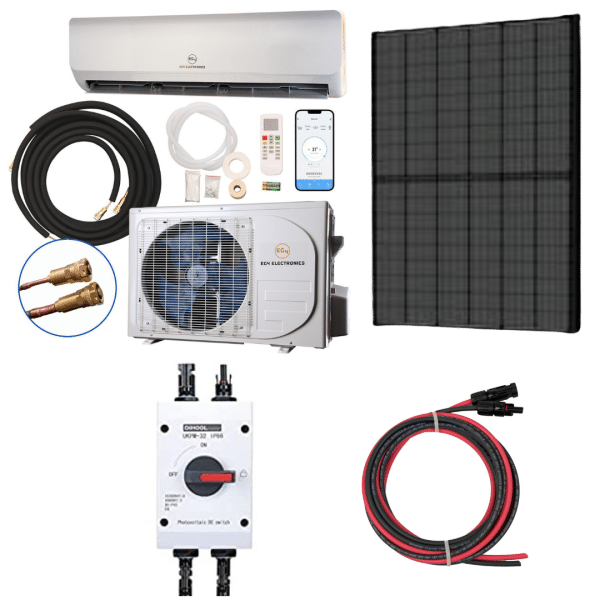

EG4 Solar 24K BTU Hybrid Minisplit Kit 3.2KW Panels Included in Kit: 1 x EG4 Hybrid AC/DC Mini Split | 24000 BTU | Energy Star, AHRI – 240V 8 x New 400W Solar Panels 1 x Solar PV DC Disconnect Switch (MC4) 1 x Pair of 10 Gauge PV Wire (50 ft, 2 Pair) 1 x Pair of 10 Gauge PV Wire (5 ft, 2 Pair) Excellent Cells Efficiency MBB technology reduce the distance between busbars and finger grid line which is benefit to power increase. Anti PID Ensured PID resistance through the quality control of cell manufacturing process and raw materials. Improved Aesthetics Compared to conventional modules, this full black modules have a more uniform appearance and superior aesthetics. Better Weak Illumination Response More power output in weak light condition, such as haze, cloudy, and early morning. Adapt To Harsh Outdoor Environment Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity environment. Excellent Quality Management System Warranted reliability and stringent quality assurances well beyond certified requirements. Specifications: Rated Power Output [W]: 400 Voc – Open Circuit Voltage (STC) [V]: 37.12V Isc – Short Circuit Current (STC) [A]: 13.96A Vmpp-Voltage at Maximum Power (STC) [V]: 31.35V Impp-Current at Maximum Power (STC) [A]: 13.08A Cell Technology: Mono PERC Number of Cells (Pieces): 108 Frame Color: Black Back Cover: Black Frame size [in]: 1.37 Module Length [in]: 67.87 Module Width [in]: 44.64 Output Cables: 4 mm^2 ,350 mm (With Connectors) Connector: MC4 compatible Temperature Coefficients of P [%/°C]: -0.29 Temperature Coefficients of I (Isc): 0.05 Length [mm (in)]: 1722 mm (67.79 in) Width [mm (in)]: 1134 mm (44.64 in) Depth [mm (in)]: 30 mm (1.18 in) Weight [kg (lb)]: 20.5 kg (45.19 lb) Workmanship Warranty Period [Years]: 12 The EG4 Solar AC is one of the most innovative ductless heat pump/air conditioners available; reduce your electric bill and keep your home the temperature you want with this energy-efficient appliance. Featuring the ability to plug directly into solar panels, this system accepts DC power from their PV array without the need for an intermediary device during the day or can draw AC power from the grid at night or during overcast days. Users of the EG4 Solar Mini-Split AC can save money when compared to conventional central air conditioning systems. Pair this unit with a small string of solar panels to immediately begin heating and cooling your property. Its compact size, sleek design, and new Plug-N-Cool technology make this EG4 Mini-Split a Do-It-Yourself project. Plug-N-Cool allows the EG4 Mini-Split to be easily installed, cooling and heating quickly in virtually any living space or workplace. Included: Indoor Head Unit Outdoor Unit Pre-Charged Lineset & Electrical Wire – 16.4Ft LCD Remote Control Installation Accessories New Plug-n-Cool Technology – Easy Do-It-Yourself Installation  Allows for quick and easy connection via the quick-connect self-closing companion valves. Plug-n-cool allows you to install this innovative mini-split system without special tools, equipment, or training. No need to pull a vacuum. Elimination of Ductwork Hassles: Enjoy hassle-free cooling and heating with the EG4 Mini-Split, designed to streamline your experience by eliminating concerns related to ducts.   User-Friendly Installation: Experience easy DIY installation with the EG4 Mini-Split’s Plug-N-Cool technology. Installing the Mini-Split requires no special tools and is a simple process in any space.  Solar Aircon App: Elevate your EG4 Mini-Split experience with the Solar Aircon app, providing remote control, energy insights, and real-time data for informed decisions, empowering you to achieve ultimate power savings. Hybrid – AC/DC Driven Power from the grid or PV array or both at the same time – No inverter, battery, or charge controller necessary! 100% energy saving in the daytime. Daytime power comes directly from solar. Plug and Play MC4 Connectors attach directly to PV wire. AC grid power limiter Limit AC power from 0-600W AC power mode, DC power mode, AC DC mix power supply (AC/DC Auto Balance) Wide operating temperature  (-10℃ to 58 ℃) Highly Efficient Perfect for off-grid, solar, or energy-efficient projects! Features AC Requirement: 240V Type: Hybrid – AC/DC Driven Coverage: 1,350 square feet SEER2 Rating: 21 Capacities: 6,100-25,200 BTU/h Indoor Unit Sound: (Turbo/5/4/3/2/1 Block) 50/48.5/45.5/43.5/41/39 dB(A) Outdoor Unit Sound: (Hi/Med/Lo) 58 dB(A) HSPF2: 9.6 COP: 11.82 Btu/W Recommended Solar Input: (90VDC-380VDC) Operating Temperature: (-10℃ to 58 ℃) Operation Temperature Indoor (Cooling/Heating): 61-90/32-90 °F Operation Temperature Outdoor (Cooling/Heating): 32-131/5-86 °F Weight: 77.07 KG / 169.93 LBS Solar Aircon App: Yes ENERGY STAR®: Yes Warranty: 5 Years Limited Warranty
