Airspool Solar 12K BTU Hybrid Minisplit Kit 2KW Used Solar Panels

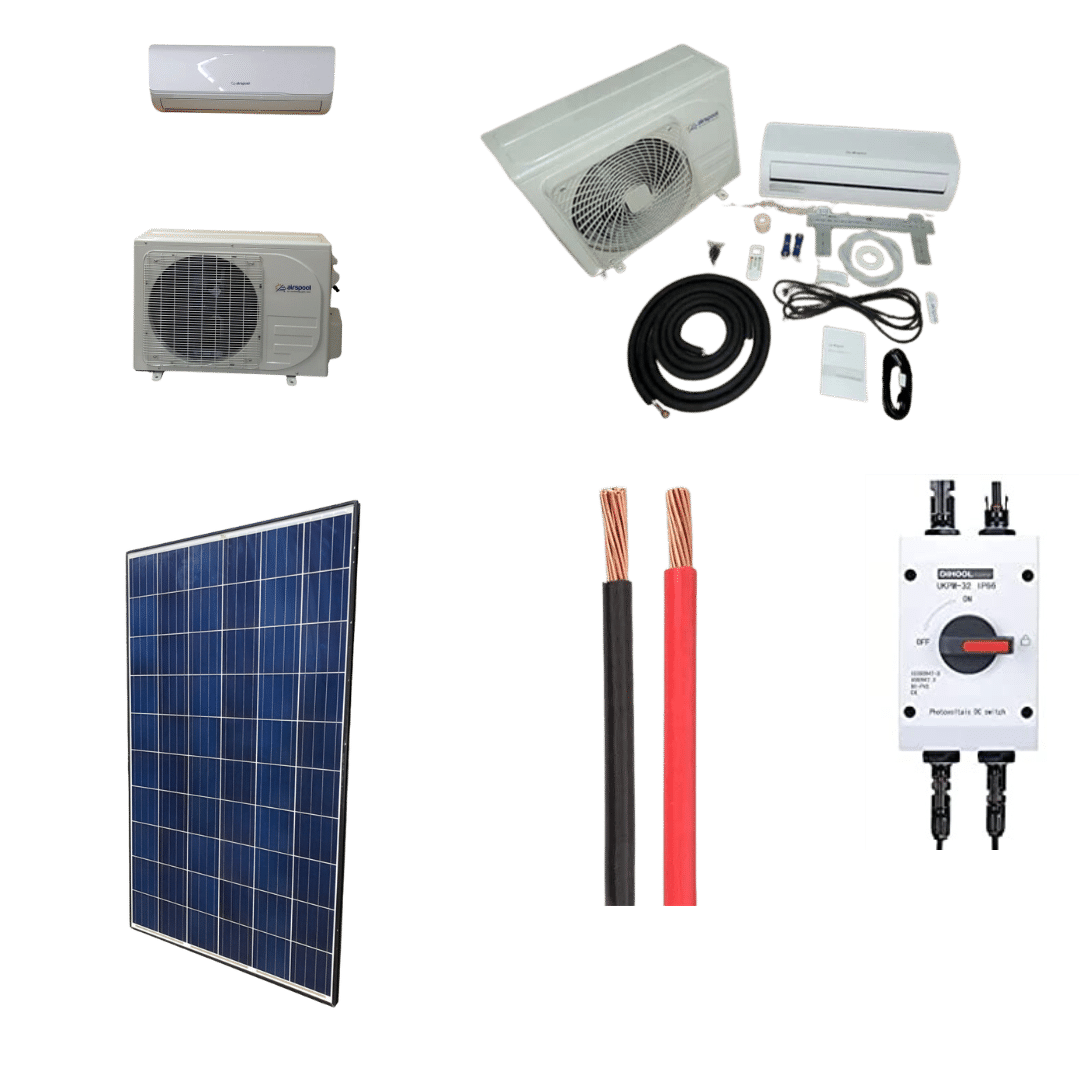

Airspool Solar Hybrid Minisplit Kit 2KW Used Panels Included in Kit: 1 x Airspool Solar Hybrid AC Unit w/ Heat Pump MS12 8 x SST 250W 60 Cell Poly Solar Panel with snail trails (no manufacturer label) 1 x Solar PV Combiner 32A DC Disconnect Switch 1 x Pair of 10 Gauge PV Wire (50 ft, 2 Pair) 1 x Pair of 10 Gauge PV Wire (5 ft, 2 Pair) Solar Panel Specifications: Rated Power: 250W Open circuit voltage (VOC): 37.6 V Max power voltage (VMP): 30.3 V Short circuit current (ISC): 8.85 A Max power current: 8.27 A Power Tolerance 0/ 3% Maximum system voltage: 600V (UL) Fuse Rating: 15 A IP65 Junction Box w/MC4 Compatible Connectors Frame: Anodized aluminum alloy Weight: 41 lbs. Dimensions: 64.95 × 39.05 × 1.37 inches (1650 × 992 × 35mm) 12K BTU MInisplit Specificiations: Model/Unit Name: MS12 Operating range -10°C (14°F) </ heating; cooling</58C (135.4°F) T3 design Normal coverage area sq. ft. 120 – 200 Power Supply AC power ph-v-hz 1Ph 115V/50-60HZ DC power (solar panels in series) v 80-380V DC power current a </=20A Recommended solar panels pcs. 4 pc. @ /-380w/panel Rated Cooling Capacity (T1) w 3510 (900-3900) btu 12000 (3000-13300) Power input (T1) w 940 (190-1270) Capacity (T3) w 2910 btu 9900 Power input (T3) w 1050 Rated Heating Capacity w 4100 (1000-4500) btu 14000 (3000-15300) Power input w 1170 (190-1700) T1 EER (w/w)/(btu/w) / 3.75/12.75 T3 EER (w/w)/(btu/w) / 2.75/9.45 COP (w/w)/(btu/w) / 3.50/11.95 Dehumidification capacity pints/day 66 l/h 1.3 Compressor Model / WHP04200 Type / 2x ROTARY Brand / Highly Indoor fan motor Power w 15 Speed (Turbo/Hi/Mi/Lo) r/min 1300/1200/1100/950 Indoor air flow (Turbo/Hi/Mi/Lo) cfm 318/285/256/206 m3/h 540/485/435/350 Indoor noise level (Turbo) dB(A) 42.5 Indoor unit Dimension (W×H×D) inches 33.07×8.07×11.6 mm 840×205×295 Packing (W×H×D) inches 36.22×11.4×14.17 mm 920×290×360 Net weight/Gross weight lbs 19.8/27.6 Kg 9.0/12.5 Outdoor fan motor Power w 40 Speed r/min 880 Outdoor air flow m3/h 2100 Outdoor noise level dB(A) <52 Outdoor unit Dimension (W×H×D) inches 31.56×22.2×12.7 mm 802×564×323 Packing (W×H×D) Inches 35.8×24.5×15.9 mm 910×622×405 Net/gross weight lbs 73.8/82.7 kg 33.5/37.5 Refrigerant type R410A Max design pressure psig 623/218 MPa 4.3/1.5 Refrigerant pipe Gas side/liquid side (inch) inches 3/8 1/4 Max. refrigerant pipe length ft. 49.2m 15 Max. difference in elevation ft. 26m 8 Drain pipe size mm 16 Refrigerant connection copper pipe length m 3 Connection wire length m 4 Electronic Expansion Valve / Yes Loading QTY 40’/ 20′ sets 200/85
