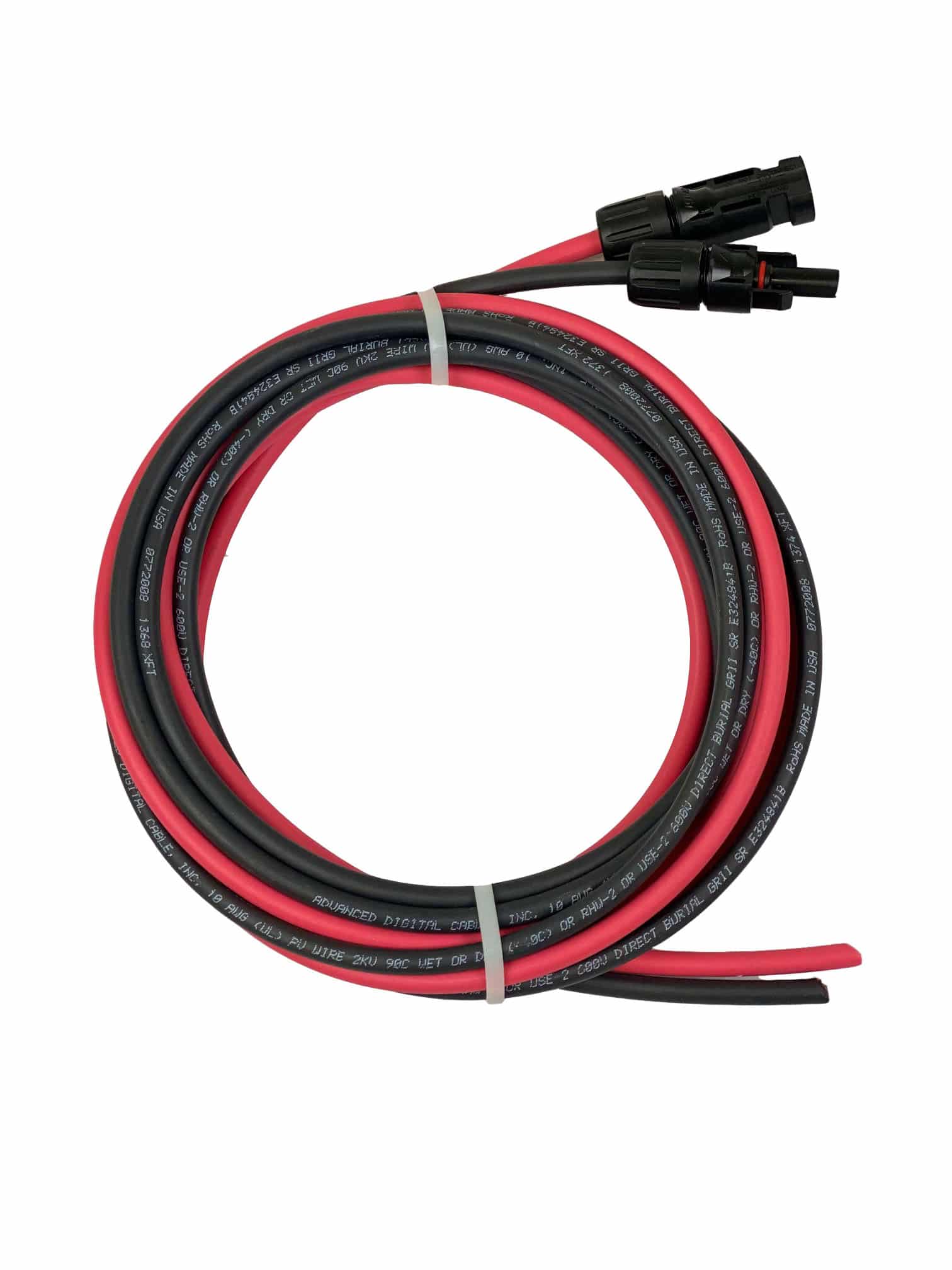

Pair of 10AWG PV Cables Solar Panel to Charge Controller Description: Pair of PV Cables With Standard Solar Connectors MC4 10 AWG PV Wire UL 4703 5 Ft to 100 Ft. UL 4703 approved and rated for 2000V. This cable is used to connect a solar panel with MC4 connectors to the charge controller. Pair of MC4 connector on one end, bare wire on the other. Available in lengths of 5 ft, 10 ft, 20 ft, 25 ft, 30 ft, 50 ft, and 100 ft. If you would like custom lengths please email or call us directly with you’re requirements. We ship via USPS. Orders 1lb and fewer will ship via USPS First Class, orders over 1lb will ship via Priority Mail Details: Protection Class:2 Withstanding Voltage:1000 V DC Rated Current: 30A (6 mm2) Contact Resistance: Fewer then 0.5 Mohms Specification: Insulation Material :PC/PA, black Temperature Range: -40 C ~ 90 C Contact Material: Copper, Sliver plated Flame Class: UL94-VO or UL94-5VA Rated Current: 30A Suitable cable: 2.5mm2,4mm2,6mm2(AWG14,AWG12,AWG10) Waterproof degree：IP67 Withdrawal force: >50N Insertion force: <50N Wire: Size: 10 AWG Conductor: Copper Length: Varies from 5 to 100 feet Color: Red and Black UL rated 2000V Sunlight Resistant
