LM358P PDIP-8 High Gain Operational Amplifier with base

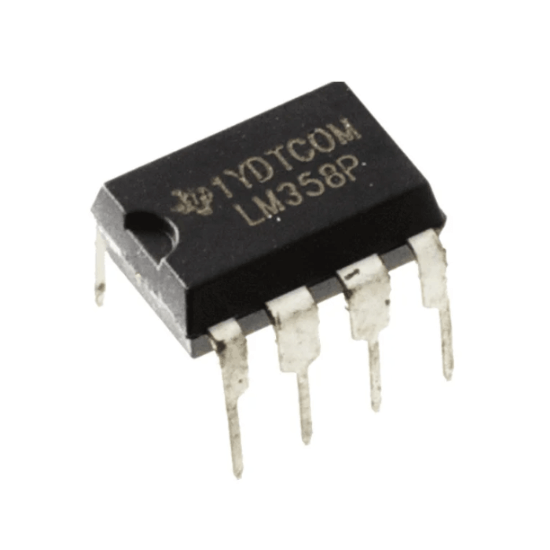

The LM358P is a versatile and widely used operational amplifier (op-amp) integrated circuit (IC) packaged in a PDIP-8 (Plastic Dual In-line Package with 8 pins) format. Developed by Texas Instruments, the LM358P is renowned for its high gain and reliability, making it a cornerstone component in various electronic circuits across industries ranging from audio amplification to industrial control systems. These devices consist of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage. At its core, the LM358P is designed to amplify voltage differences between its two input terminals while maintaining a high level of stability and precision. With a typical open-loop voltage gain exceeding 100 dB, this op-amp is capable of significantly amplifying small input signals, making it suitable for applications demanding high amplification levels. One notable feature of the LM358P is its wide operating voltage range, typically spanning from single to dual power supply configurations, thereby accommodating diverse circuit requirements. Moreover, with its low input bias current and offset voltage, the LM358P ensures minimal distortion and accurate signal processing even in low-voltage applications. The LM358P operates over a broad range of temperatures, making it suitable for both commercial and industrial environments where temperature variations are common. Its robust design and high noise immunity further enhance its suitability for critical applications where reliability is paramount. In addition to its high gain, the LM358P offers an excellent common-mode rejection ratio (CMRR), allowing it to effectively suppress unwanted noise and interference present in the input signal. This feature is particularly beneficial in applications such as sensor interfaces and audio amplification, where maintaining signal integrity is essential. The LM358P is designed with a versatile architecture that enables it to be configured in various amplifier configurations, including inverting, non-inverting, differential, and summing amplifiers. This flexibility makes it a go-to choice for circuit designers seeking a reliable and adaptable op-amp solution for diverse applications. The LM358P’s PDIP-8 packaging offers ease of integration into both through-hole and surface-mount PCB designs, facilitating convenient assembly and maintenance processes. Its compact form factor and standardized pin layout ensure compatibility with a wide range of circuit layouts and board designs. Furthermore, the LM358P incorporates built-in protection features such as short-circuit and thermal shutdown protection, safeguarding it against potential damage from overload conditions or excessive temperature fluctuations. This enhances the longevity and durability of circuits employing the LM358P, contributing to overall system reliability. In conclusion, the LM358P PDIP-8 High Gain Operational Amplifier represents a pinnacle of performance and reliability in the realm of integrated circuitry. With its exceptional gain, wide operating voltage range, and versatile configuration options, it serves as a cornerstone component in countless electronic applications, from consumer electronics to industrial automation systems. Whether amplifying signals in audio circuits, processing sensor data, or controlling industrial machinery, the LM358P continues to be a trusted solution for engineers and designers seeking high-performance amplification in a compact and reliable package. Note: Product may vary from images shown in terms of brand name according to the availability. Features: Wide supply voltage ranges Low supply-current drain independent of supply voltage Common-mode input voltage range includes ground, allowing direct sensing near the ground Low input bias and offset parameters Internal frequency compensation Applications: Sensing & Instrumentation, Communications & Networking, Audio. Package Includes: 1 x LM358P PDIP-8 High Gain Operational Amplifier SKU: IK-287 Categories: All Products, Clock & Timer ICs, Electronic Components, Integrated Circuits, Passive Components, Transistor Tag: lm358 Loading...Barcode:
