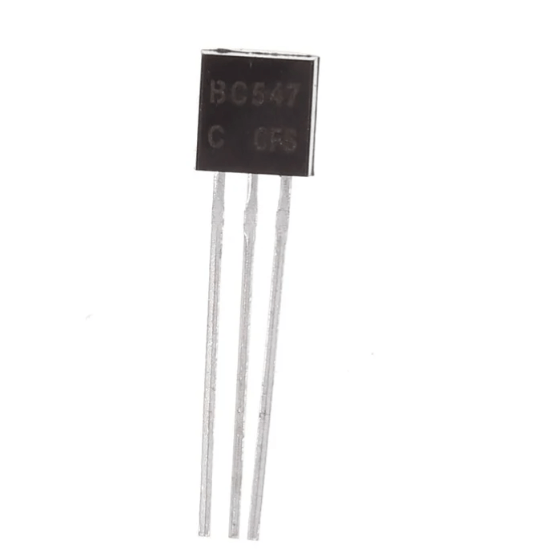

BC547 NPN DIP Transistor (Pack of 10)

The BC547 is a commonly used NPN bipolar junction transistor (BJT) available in a DIP (Dual Inline Package) configuration. Here are some key features and specifications: The BC547 transistor is widely used due to its versatility, affordability, and ease of use in various electronic circuits, especially in hobbyist and educational projects. The BC547 is a widely used NPN bipolar junction transistor (BJT) available in a DIP (Dual In-line Package) format. Developed by the semiconductor manufacturer Fairchild Semiconductor (now part of ON Semiconductor), the BC547 is known for its versatility, reliability, and ease of use in a wide range of electronic applications. Its popularity stems from its low cost, availability, and compatibility with various circuit configurations. At its core, the BC547 is a small-signal general-purpose transistor designed for amplification and switching applications. As an NPN transistor, it consists of three layers of semiconductor material: a thin layer of P-type semiconductor (the “base”) sandwiched between two layers of N-type semiconductor (the “emitter” and “collector”). This configuration allows the BC547 to amplify small input signals and control larger output currents, making it suitable for use in amplifiers, oscillators, and digital logic circuits. One of the key characteristics of the BC547 is its high current gain (hFE), typically ranging from 110 to 800, depending on the specific variant and operating conditions. This high gain allows the transistor to amplify weak input signals with minimal distortion, making it ideal for low-power amplification tasks in audio and radio frequency (RF) circuits. Moreover, the BC547 exhibits low noise and low leakage current characteristics, ensuring accurate signal processing and minimal power consumption in sensitive applications. Its low saturation voltage and high collector current capability further enhance its suitability for switching applications, where fast response times and efficient power handling are essential. The BC547 is rated for a maximum collector current (IC) of 100 mA and a maximum collector-emitter voltage (VCEO) of 45 volts, making it suitable for a wide range of low-to-medium power applications. Its compact DIP packaging and standardized pinout layout facilitate easy integration into both through-hole and surface-mount PCB designs, allowing for efficient assembly and maintenance processes. Additionally, the BC547 is available in various grades and temperature ranges, ensuring compatibility with different operating environments and performance requirements. This flexibility makes it suitable for use in consumer electronics, industrial control systems, and automotive applications, among others. In terms of circuit configuration, the BC547 can be used in common-emitter, common-base, or common-collector configurations, offering designers flexibility in achieving desired signal amplification or switching characteristics. Its versatility allows it to serve as a key component in voltage amplifiers, current sources, and digital logic gates, contributing to the functionality of diverse electronic systems. Furthermore, the BC547 is supported by comprehensive datasheets and application notes provided by its manufacturer and various electronics resources. These resources offer guidance on proper usage, operating conditions, and application examples, enabling engineers and hobbyists to effectively utilize the transistor in their projects. Despite its widespread use, it’s important to note that the BC547 is a general-purpose transistor and may not be suitable for high-power or high-frequency applications where specialized transistors are required. Additionally, care must be taken to ensure proper biasing and thermal management to prevent device failure and ensure reliable operation over time. In conclusion, the BC547 NPN DIP transistor represents a cornerstone component in electronic circuit design, offering versatile amplification and switching capabilities in a compact and affordable package. Its high gain, low noise, and low leakage characteristics make it well-suited for a wide range of low-to-medium power applications, while its compatibility with various circuit configurations and operating environments ensures its continued relevance in the ever-evolving field of electronics. Whether used in educational projects, hobbyist endeavors, or commercial products, the BC547 remains a reliable and indispensable component for engineers and enthusiasts alike.   Note: Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product. Features: Type: NPN transistor, which means it allows current to flow from the collector to the emitter when a small current is applied to the base. Package: DIP package, which is a through-hole package with two parallel rows of pins for easy mounting on a circuit board. Applications: Often used in amplification circuits, switching applications, and as general-purpose transistors in various electronic devices. Maximum Voltage and Current Ratings: The maximum collector-base voltage (Vcbo) is typically around 50V, and the maximum collector current (Ic) is usually around 100mA. Gain (hFE): The DC gain or amplification factor of the BC547 transistor is typically between 110 and 800, depending on the specific model and manufacturer. Frequency Range: Capable of operating in the low to moderate frequency range, suitable for audio and general-purpose amplifier circuits. Polarity: As an NPN transistor, its pinout consists of the collector (C), base (B), and emitter (E) terminals. Package Includes: 10 x BC547 NPN Transistor. SKU: IK-290 Categories: All Products, Passive Components, Transistor Tags: bc547, NPN Transistor, transistor Loading...Barcode:
