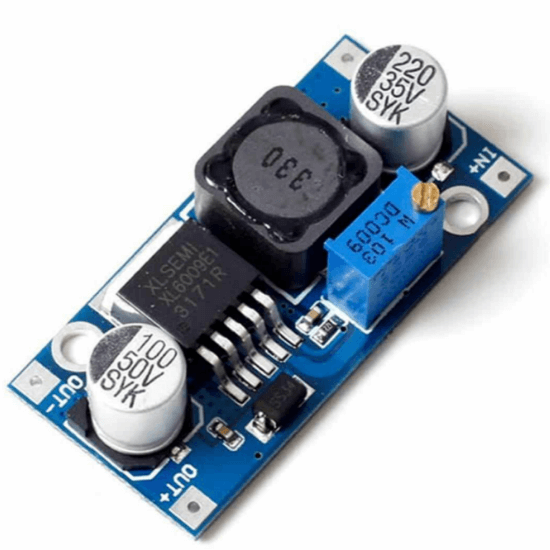

XL6009 DC-DC Step-Up Converter Ultra LM2577 Booster Circuit Board Standard Quality

This XL6009 DC-DC Step-Up Converter is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance rather than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance. The XL6009 DC-DC step-up converter is a versatile module widely used in electronics projects requiring voltage boosting. It’s equipped with features to efficiently increase a lower input voltage to a higher output voltage, making it invaluable in various applications. One key feature of the XL6009 is its wide input voltage range, typically spanning from 5V to 32V. This flexibility allows it to work with a variety of power sources, including batteries, solar panels, and DC power supplies. Moreover, its adjustable output voltage capability, controlled by an onboard potentiometer, enables users to fine-tune the output to suit their specific requirements, usually up to around 35V. Additionally, many XL6009 modules come with built-in protection features such as over-temperature, over-current, and short-circuit protection. These safeguards help prevent damage to the module and connected devices, enhancing reliability and safety. In terms of applications, the XL6009 DC-DC Step-Up Converter finds use in a wide range of projects. It’s commonly employed to power LED strips, drive motors, charge batteries, and support various other electronics requiring a higher voltage than the available power source. Despite its compact size, the XL6009 DC-DC Step-Up Converter packs a punch, delivering output currents typically ranging from 2A to 4A, depending on the specific module and circuit design. Its small form factor makes it easy to integrate into electronic systems, whether as a standalone component or as part of a larger circuit. However, it’s crucial to adhere to the manufacturer’s guidelines and datasheet specifications when using the XL6009 module to ensure proper operation and avoid damage. Understanding its capabilities and limitations is essential for achieving optimal performance in your projects. It equips 4A high-efficiency MOSFET switches, to provide a conversion efficiency of up to 94%. High switching frequency of 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller The XL6009 DC-DC Step-Up Converter is commonly used to increase a lower voltage to a higher voltage. Here’s some information about this product: Input Voltage Range: Typically, it can accept input voltages from as low as 5V up to 32V. Output Voltage: The output voltage can be adjusted using the onboard potentiometer. It can typically boost the input voltage up to around 35V. Output Current: The maximum output current varies depending on the specific module and circuit design but can generally range from 2A to 4A. Efficiency: The efficiency of the XL6009 module can reach up to 94% under ideal conditions. Protection Features: Some modules may come with over-temperature protection, over-current protection, and short-circuit protection to ensure the safety of the circuit and connected devices. Applications: Common applications include powering LED strips, driving motors, charging batteries, and various other projects requiring a higher voltage than the available power source. Module Size: The XL6009 module typically comes in a small form factor, making it suitable for integration into various electronic projects. Usage: It’s essential to follow the manufacturer’s guidelines and datasheet while using the XL6009 module to ensure proper operation and avoid damaging the module or connected device. Pins IN input positive IN- input negative! OUT output positive OUT- output negative Features : The performance is much higher than LM2577. Non-isolated Boost converter. It has a non-synchronous rectifier. Small and Handy voltage regulator module. Package Includes : 1 x CN6009 XL6009 DC-DC Step-up converter module. SKU: IK-143 Categories: All Products, Buck/Boast Converter, DC-DC Converter Tags: 4A Regulator, Boost Converter, DC Power Supply, Multi Output Voltage, Power Supply, Step Up Regulator, Voltage Regulator, Voltmeter, XL6009 Loading...Barcode:
