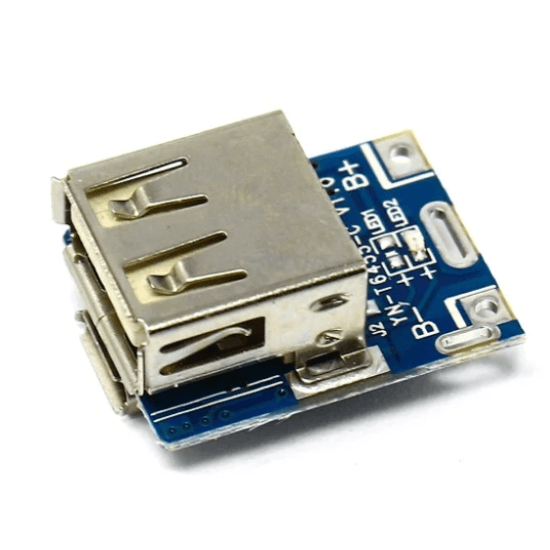

5V Step-Up Power Module Lithium Battery Charging Protection Board USB For DIY Charger

This is a 5V Step-Up Power Module Lithium Battery Charging Protection Board USB For DIY Charger 134N3P. It’s a Lithium Battery Charging Protection Board Boost Converter LED Display USB For DIY Charger 134N3P & High-Quality USB iron with a Cheap display port video card and Integrated Circuits. The 5V Step-Up Power Module with Lithium Battery Charging Protection Board USB is a versatile and essential component in the design of portable electronic devices, power banks, and various battery-powered applications. This integrated module serves multiple functions, including stepping up voltage, charging lithium-ion batteries, and providing protection mechanisms to ensure safe and efficient operation. At its core, the module consists of several key components, including a step-up voltage converter, a lithium battery charging circuit, and a range of protective features. The primary function of the step-up voltage converter is to boost the input voltage, typically from a lithium-ion battery, to a stable 5V output suitable for powering USB devices. This feature is particularly useful in applications where the battery voltage is lower than the desired output voltage, such as in single-cell lithium battery systems. The lithium battery charging circuit is another integral part of the module, allowing for the safe and efficient charging of lithium-ion batteries via a USB input. This circuit typically incorporates a dedicated charging IC (Integrated Circuit) that regulates the charging current and voltage to ensure optimal charging performance while preventing overcharging and damage to the battery cells. The USB input provides a convenient means of charging the battery from various power sources, including wall adapters, power banks, and computer ports, enhancing the module’s versatility and usability. In addition to voltage conversion and battery charging capabilities, the module also integrates various protection mechanisms to safeguard the battery and connected devices against potential hazards. One of the primary protection features is overcharge protection, which prevents the battery from being charged beyond its safe voltage limits. This is achieved through the monitoring of battery voltage levels and the automatic cutoff of the charging current when the voltage reaches a predefined threshold. Overcharge protection is crucial for preventing excessive heat generation, electrolyte decomposition, and other adverse effects associated with overcharging. Furthermore, the module typically includes over-discharge protection to prevent the battery from being discharged beyond its safe operating voltage. This feature ensures the longevity and performance of the lithium-ion battery by disconnecting the load when the battery voltage drops below a certain threshold, thereby preventing irreversible damage to the cells. Short-circuit protection is another important safety feature incorporated into the module, designed to prevent damage to the battery and connected devices in the event of a short circuit. This protection mechanism rapidly disconnects the battery from the load in response to a short-circuit condition, minimizing the risk of overheating, fire, or electrical damage. Temperature protection is yet another critical aspect of the module’s safety features, particularly in applications where the battery may be subjected to extreme temperatures or environmental conditions. Temperature sensors monitor the battery temperature and initiate protective measures, such as reducing charging current or temporarily disabling the charging process, to prevent overheating and ensure the long-term reliability of the battery system. In summary, the 5V Step-Up Power Module with Lithium Battery Charging Protection Board USB is a comprehensive solution for powering and charging electronic devices with lithium-ion batteries. By integrating voltage conversion, battery charging, and a range of protective features, this module offers a reliable and efficient power management solution for a wide range of applications, from portable gadgets to DIY projects. Its compact size, ease of use, and robust safety features make it an indispensable component in the design of battery-powered systems.   Note: Product may vary in terms of design. Features: BAT Discharging Stop Voltage: 2.9V. Discharging Efficiency:85%(input 3.7V output 5V/1A). Charging and discharging indication. Internally installed charging and discharging power MOS. Preset 4.2V charging voltage, precision ±1%. Max 8uA standby current. Integration charging management and discharging management. Intelligent temperature control and overtemperature protection. Integration output overvoltage protection, short circuit protection, and overload protection. Integration overcharging and over-discharging protection. Support trickle mode and zero voltage charging. When charging: red light flashing. Fully charged: Red light glows for a long time. Package Includes: 1 x 5V Step-Up Power Module Lithium Battery Charging Protection Board.
