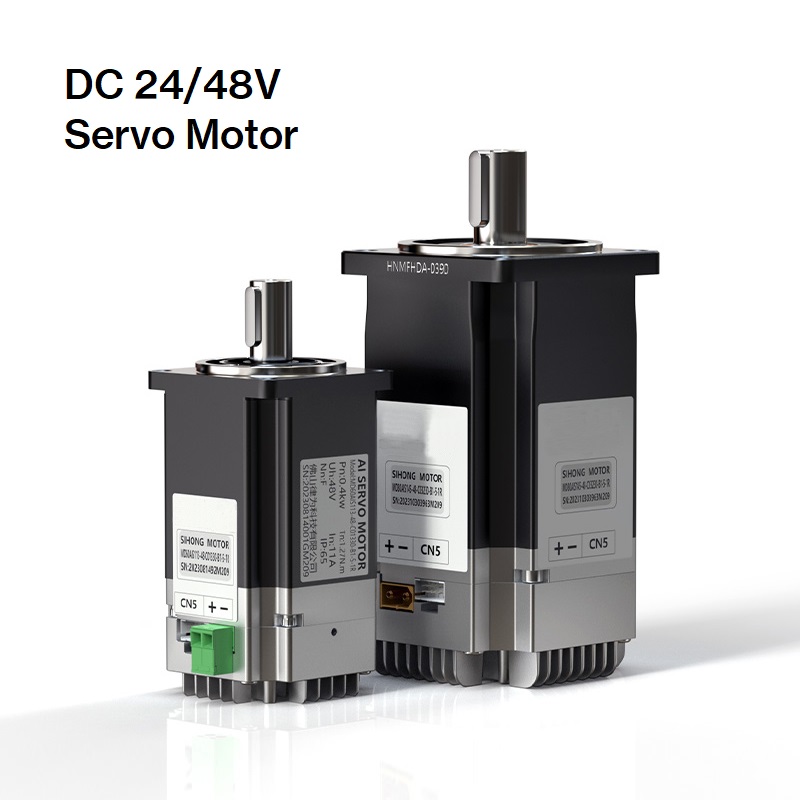

DC 24V 48V Servo Motor with Integrated Encoder

Item Name: DC 24V 48V Servo Motor with Integrated Encoder Main Specification: 1. DC 24V 48V Drive 2. Integrated Encoder 3. From 31W to 1000W 4. RS485 Communication 5. Driver with LED screen, offline configuration; with 485 Serio ports, supports Speed, Torque and Position mode; PS100 6, 17-bit differential magnetic encoder PCs in Item: 1 PC Manufacturer: ShangHai, Made in China Reference: Note: Servo 60/80 are Metric flange size. Servo 60 corresponds approximately Nema24, Servo80 corresponds approximately Nema32 Nema17-62-24 Nema17-94-24 Nema23-85-24 60-200 60-400 80-750 Rated DC (V) 24 24 24 24 48 48 Encoder 17-bit absolute 17-bit absolute 17-bit absolute 17-bit absolute 17-bit absolute 17-bit absolute Rated Power (W) 62 94 85 200 400 750 Rated Current (A) 3.4 5.2 6.2 12 11 20 Torque(NM) 0.2 0.3 1.45 0.64 1.27 2.4 Peak Torque 0.6 0.9 2.18 1.28 3.82 4.8 Rated RPM 3000 3000 1100 3000 3000 3000 Peak RPM 4000 4000 2100 3200 3200 3200 Phase Resistance (Ω) 0.8 0.3 0.73 0.12 0.27 0.08 Phase Inductance(mH) 0.5 0.2 0.27 0.36 0.56 0.24 Body Length (MM) 90 110 100 95 113 130 Protection Rating IP65 IP65 IP65 IP54 IP54 IP54 Shaft Diameter (MM) Ø5 Ø6 Ø8 Ø14 Ø14 Ø19 Shaft Length (MM) 24 24 26 27 27 32 Shaft Keyway N/A N/A N/A Yes Yes Yes
