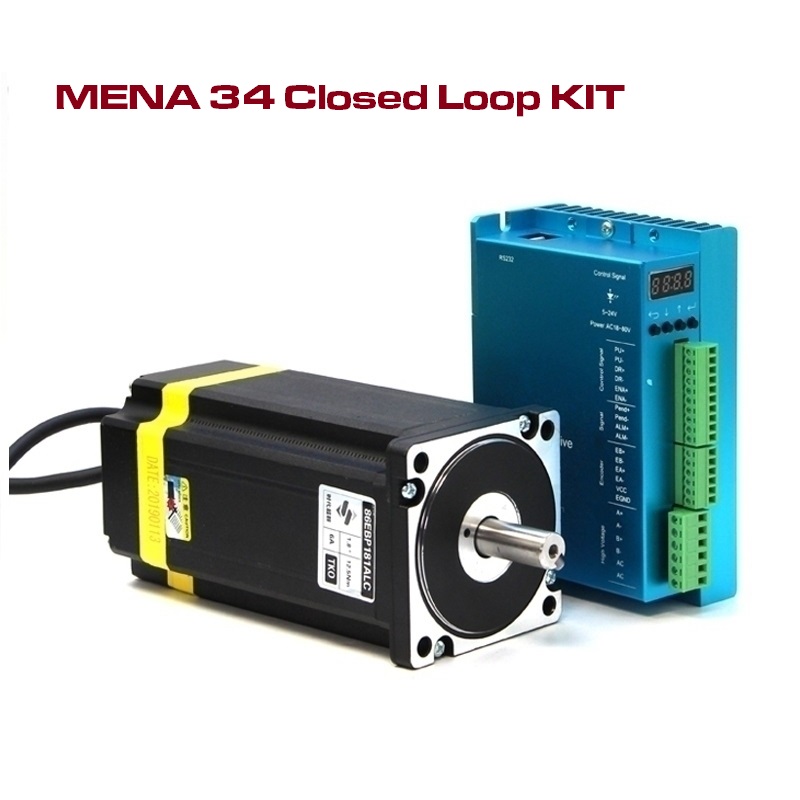

NEMA 34 Closed Loop Stepper Motor with Driver Set

$10.88 $13.27
Item Name: NEMA 34 Closed Loop Stepper Motor with Driver PCs in Item: 1 Closed Loop Stepper Motor ZDM-2HA865 Driver (with LED, RS232) 2 Meter Cables Manufacturer: ShiDaiCQ, Made in China Reference: 865 Closed-Look Driver User Manual 86EBP111ALC-5Nm 86EBP147ALC-8.5Nm 86EBP181ALC-12.5Nm Step Angle 1.8° 1.8° 1.8° Number of Phase 2 2 2 Holding Torque 5Nm 8.5Nm 12.5Nm Rated Voltage 2.52 V 3.12 V 4.2 V Rated Current 6A 6A 6A Phase Resistance 0.42 Ohm ± 1 0.52 Ohm ± 1 0.7 Ohm ± 1 Phase Inductance 2.4 mH ±20 4.16 mH ±20 7.2 mH ±20 Dielectric Strength AC 500V/ 1min / 5mA Max AC 500V/ 1min / 5mA Max AC 500V/ 1min / 5mA Max Rotor Inertia 1400 g-cm² 2700 g-cm² 4000 g-cm² Shaft Length 34mm 34mm 34mm Shaft Diameter 14mm 14mm 14mm Length 105mm 143mm 176mm Weight 2.6 kg 4.5 kg 5.9 kg Insulation Class B (130°) B (130°) B (130°) Input Voltage 24~100 VDC/18~80 VAC 24~100 VDC/18~80 VAC 24~100 VDC/18~80 VAC
