Nema 23 Closed Loop Stepper Motor Bundle

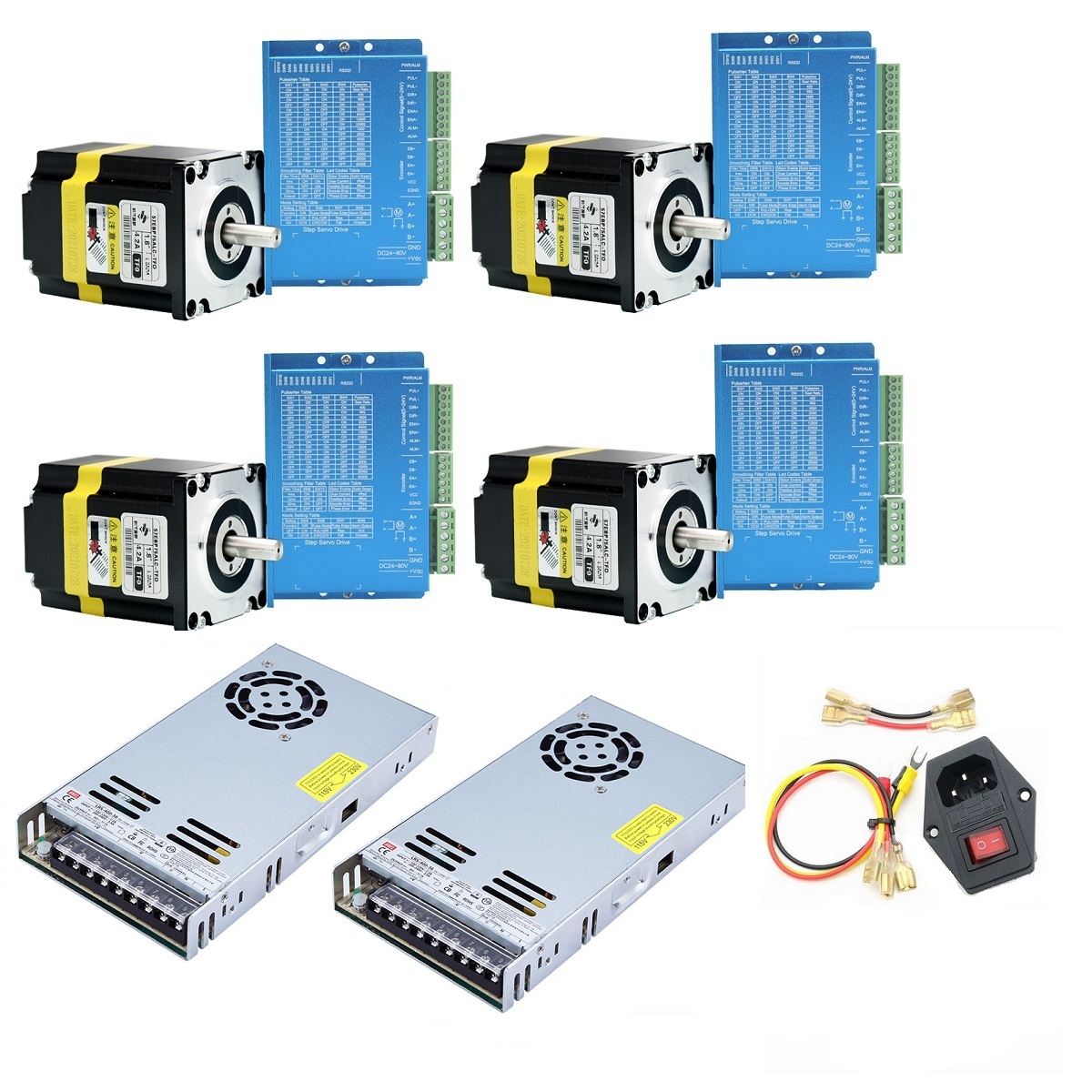

Item Name: Nema 23 Closed Loop Stepper Motor Bundle Feature: High performance closed loop nema 23 with optimized driver; Most useful combination with 400W SPU; Material: Measurement System: PCs in Item: 1 Sets: Closed-Loop Nema23 x 4, 400W 36V DC PSU x 2, Rocker Switch x 1 Manufacturer: BeiJing, Made in China Note: The new version of the driver requires a lower voltage to drive the motor to peak performance, so the 60V power supply in the original kit has been adjusted to 36V. Model# Holding Torque Rating Current Operation Voltage Phase Resistance Inductance Body Length Encoder Lines Shaft Length Shaft Diameter 57EBP75ALC 1.5Nm 4.1A 24~48V 0.5Ω 1.8mH 75mm 1000P 21mm 8mm 57EBP98ALC 2.2Nm 4.1A 24~48V 0.5Ω 1.8mH 98mm 1000P 21mm 8mm 57EBP105ALC 2.5Nm 4.1A 24~48V 0.5Ω 1.8mH 105mm 1000P 21mm 8mm 57EBP143ALC 3.0Nm 4.1A 24~48V 0.5Ω 1.8mH 143mm 1000P 22mm 8mm
