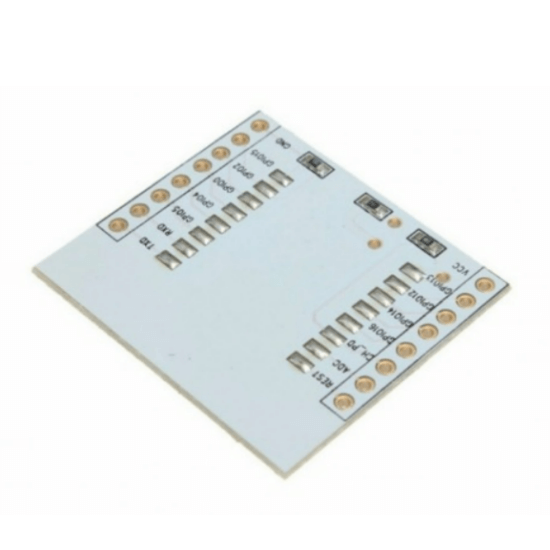

This ESP8266 Serial Wireless WIFI Module Adapter Plate is for ESP-07, ESP-08, ESP-12E ESP8266 SMD ESP8266 Module. These SMD ESP8266 modules have an unfriendly pin pitch. But by use of this adapter PCB, you can solder ESP-07, ESP-08 or ESP-12E modules and can use your favourite ESP8266 SMD modules on breadboards or on perforated boards. ESP8266 adapter plate compatible with the ESP07, ESP08, and ESP12. Because soldering the ESP modules is not always easy, this adapter plate is available. The WiFi module can be soldered to the PCB, wherein they are connected to connection points clearly indicated by headers. On the bottom layer, there is a land-pattern for a 3.3V regulator. To use 3.3V regulator you will need to desolder 0 Ohm jumper resistor R1. The VCC pin then becomes 4.5V to the 9V power input. To buy the Lates ESP-12F Wifi Module click on the name below, ESP-12F ESP8266 Wifi Wireless IoT Board Module Features : It features reserved land-pattern for the 3.3V regulator It has Pinouts on the top layer in black color. Compatible with Latest ESP-12F ESP8266 Wifi Module It includes a 10K pull-up resistor populated on PCB. Package Includes : 1 x ESP8266 Adapter Plate Categories: All Products, ESP Boards, ESP8266 Boards Tags: ESP, ESP-12, ESP8266, ESP8266 Adapter Plate, ESP8266 series, ESP8266EX, IO Plate, Wifi Loading...Barcode:
