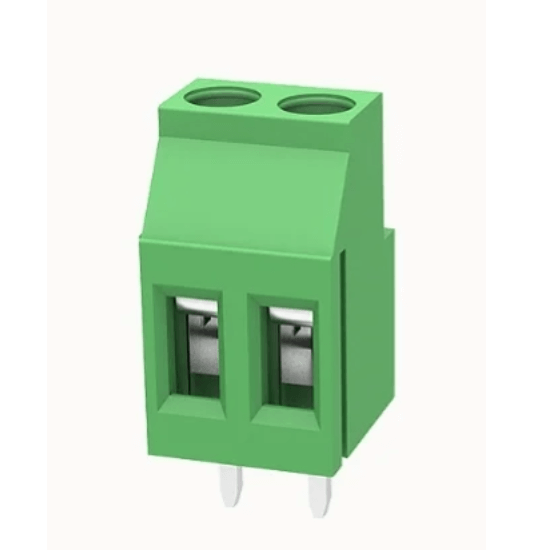

The DG130-5.08-02P is a type of PCB terminal block that is commonly used for electrical connections in electronic devices or machinery. This particular terminal block is designed with a pitch of 5.08mm, which refers to the distance between the center of each pin. It also has a green color for easy identification. The terminal block is rated for a maximum current of 20A and a voltage rating of 250V. It is built to withstand high voltages and currents, making it a reliable and safe choice for electrical connections. The connector method for this terminal block is a screw connector with a tension sleeve. This allows for easy and secure connection of wires, ensuring that they stay in place even in high-vibration environments. The terminal block is designed to work with wires that have a cross-sectional area of 0.5-2.5mm². This means that it can accommodate a range of wire sizes and can be used for various applications. The “2-pin” designation indicates that the terminal block accommodates two electrical conductors or wires, while “5.08mm” refers to the pitch or spacing between the pins. The 5.08mm pitch is a standard measurement in terminal block design, ensuring compatibility with a wide range of PCB layouts and components. This spacing allows for easy insertion and removal of wires, as well as efficient routing of conductors within the circuit. PCB terminal blocks feature a rugged and durable construction suitable for use in various industrial, commercial, and consumer electronic applications. The housing of the terminal block is typically made of high-quality thermoplastic or thermoset materials that offer excellent mechanical strength, electrical insulation, and resistance to environmental factors such as temperature, humidity, and chemical exposure. Each pin of the terminal block consists of a metal contact or terminal that securely holds the wire in place and establishes electrical connectivity with the PCB. The terminals may feature various configurations, such as screw-clamp, spring-clamp, or push-in terminals, depending on the specific requirements of the application. Screw-clamp terminals, for example, allow for secure and tool-less connection of wires using a screw mechanism, while spring-clamp terminals provide quick and easy wire insertion with minimal effort. The terminal block is mounted onto the PCB using through-hole or surface-mount technology (SMT) soldering techniques, depending on the PCB design and assembly process. Through-hole terminal blocks are inserted into pre-drilled holes on the PCB and soldered in place, providing robust mechanical stability and high reliability. Surface-mount terminal blocks, on the other hand, are soldered directly onto the surface of the PCB, offering a compact footprint and simplified assembly process. The 2-pin 5.08mm PCB terminal block enables efficient and organized wiring of electrical circuits, reducing installation time and labor costs. Its modular design allows for easy expansion or modification of the circuit layout without the need for specialized tools or equipment. Additionally, the terminal block facilitates troubleshooting and maintenance tasks by providing convenient access to individual wires or components within the circuit. In terms of the contact surface, the DG130-5.08-02P terminal block is coated with tin, which enhances its conductivity and resistance to corrosion. This ensures a stable and reliable electrical connection over time. Features: Rated current of 20A: The terminal block can handle a maximum current of 20 amperes, making it suitable for many applications. Rated voltage of 250V: The terminal block is designed to work with a maximum voltage of 250 volts, which makes it suitable for many electronic devices and machinery. The cross-sectional area of 0.5-2.5mm²: The terminal block can accommodate wires with a range of sizes, making it versatile for various applications. Pitch of 5.08mm: The distance between the center of each pin is 5.08mm, making it compatible with other devices that have the same pitch. Connector method of screw connector with tension sleeve: The terminal block uses a screw connector with a tension sleeve, which makes it easy to connect and secure wires. Color-coded green: The terminal block has a green color, which helps with easy identification and differentiation from other components. Contact surface coated with tin: The contact surface of the terminal block is coated with tin, which enhances conductivity and protects against corrosion. Specifications: Rated current: 20A Rated voltage: 250V Cross-sectional area: 0.5-2.5mm² Pitch: 5.08mm Connector method: Screw connector with tension sleeve Color: Green Contact surface: Tin-coated Number of positions: 2 Mounting type: Through-hole Termination: Solderable Wire entry direction: 90° Housing material: Polyamide (PA) Flammability rating: UL94V-0 Operating temperature range: -40°C to 105°C Wire stripping length: 7mm Package Includes: 1 x 2 Pin 5.08mm PCB Terminal Block SKU: IK-220 Categories: All Products, Cables & Connector, Connector, PCB/VeroBoards, Prototyping & Misc, Terminal Blocks Tag: PCT and DC Power Connectors Loading...Barcode:
