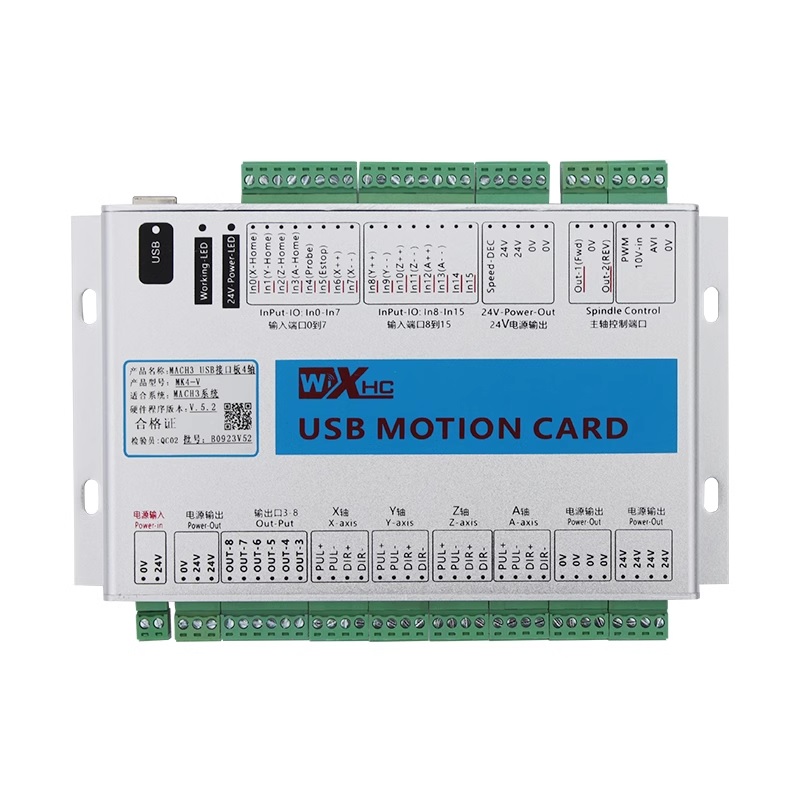

Mach3 Motion Control Breakout Board USB or Ethernet
Features
$ 10.88
Description
Item Name: Mach3 Motion Control Breakout Board USB or Ethernet Description: 16 input ports, 8 output ports 2000KHZ pulse output for each axis, supporting stepper motors and servo motors Multiple models: 3 Axis, 4 Axis and 6 Axis Support All IO-port isolation Velocity feedback function, G Code Breakpoint saving Fully supporting all Mach3 versions. Support Windows PC includes 64bit windows 10 Drive Current: Isolated open collector output; 5V, 20mA Spindle inverter output: Analog voltage output:0-10V;PWM output:5V, 1KHZ, Duty; 0-100%; Pulse direction output:5V, 15HZ to 4 KHZ Spindle speed Input: Isolated input, 5V pulse signal Isolation Voltage:3.5KV PCs in Item: 1 PCs (card, cable(usb/enthernet),software, user manual (English version) Manufacturer: WiXHC, ChengDu China Reference: Mach3 Motion Control Breakout Board User Manual (Customer access only)
Additional information
