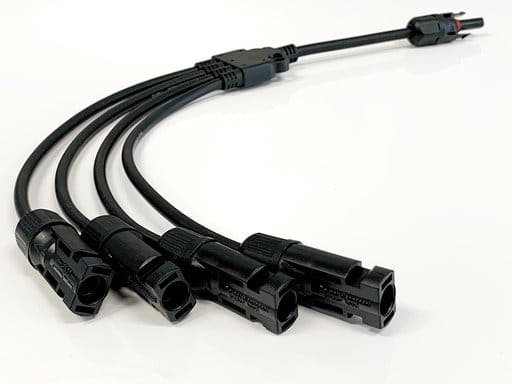

MC4 Cable Wire Connectors Adapter – Y Branch Description: The MC4 Pigtail (Y-branch) adapters are Y style designed adapters that are typically utilized in a parallel wiring solar application. These MC4 pigtails are designed to help maintain the voltage of the solar panel configuration to match the battery size. The options included are: 2 to 1, 3 to 1 and 4 to 1. Features: -Double seal rings for better waterproof effect -Compatible with PV cables with different insulation diameters -It can be used in harsh environment -With excellent aging resistance and UV endurance -Created seal, design of dust proof -Load capability with big current and high voltage -Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument -Strong pulling force capability -Resistance of extra high & low temperature and fireproof -Lower contact resistance Specifications: -Main cable specification：6mm2(AWG10) -Branch cable specification：4mm2(AWG12) -Rated Current: 30A -Rated voltage: 1000VDC -Waterproof degree：IP67 -Withdrawal force: ≥50N -Insertion force: ≤50N -Insulation material: PPO PA -Temperature range: -40 ℃ ~ 90 ℃
